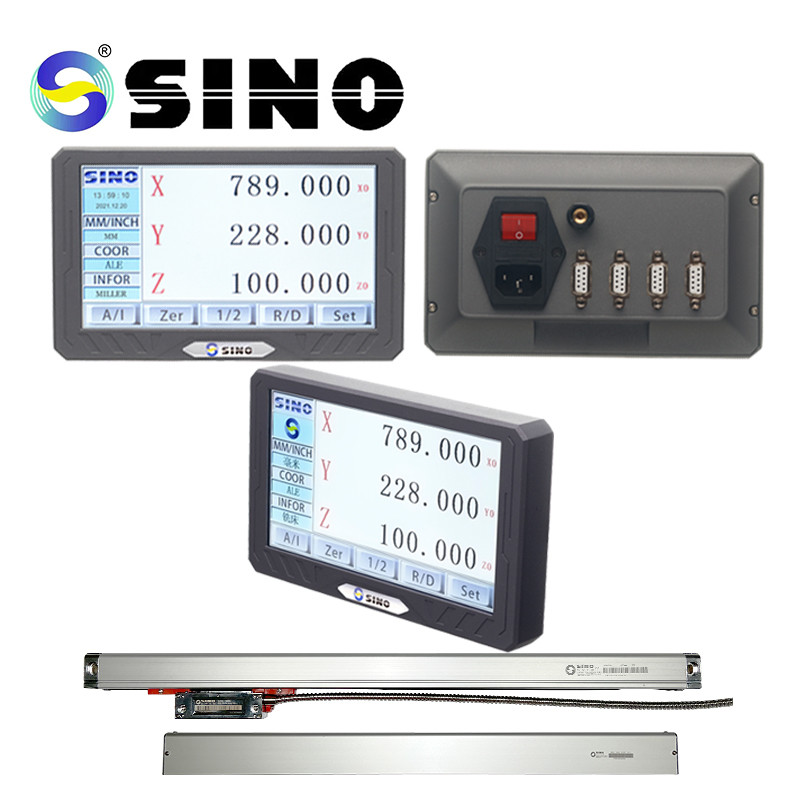

SINO DRO Kit SDS200S Test Instruments Digital Readout System Glass Linear Scale For Lathe Boring Machine
The kit is specifically designed to meet the needs of 3 axis small milling machines.
Two common linear rulers, the KA-600 or the KA-300, and one LCD display readout, the SDS200s.
KA-600 linear ruler: 1000 - 3000mm
Linear ruler KA-300: 70 - 1020mm
Package list:
| Item name | Miniature metal LCD milling machine with three axes Reader's kit |
| Digital Readout (DRO) | SDS200s |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Advantages
-Support for five languages: Chinese, German, French, English, and Spanish
-Touch Screen, easy to use
Simple, user-friendly system
-Large LCD screen that clearly shows
Features
The LCD display is extensively used for lathe, drilling, boring, and milling machines and is compatible with all Chinese optical linear glass scales.
It can switch between 5 languages via system in a single display, making lathes and milling machines more useful for users from many nations.
Parameter
The SDS200S model
Voltage input: AC80V-240V
TTL input signal
Metal cover as a material
Plug: AU, EU, US, UK etc.
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
