The LCD display is commonly used in lathe, drilling, boring, and milling machines, and it supports all Chinese optical linear glass scales.

Its ability to switch between Chinese and English on a single display makes it more useful for users of milling machines and lathes from many nations.

Measurement

The SDS200 model

Voltage input: AC80-240V

Signal input: TTL

Material: Cover made of metal

Plug: US, UK, EU, AU, etc.

Specifications for Sino Linear scale encoder

A high-performance universal display console with milling, lathe, and grinding capabilities is provided by the SDS200.

It is possible to connect up to four linear encoders with this four-axis type. To combine axes or modify the input to fit equipment made by other manufacturers, there are more interfaces available. Please refer to the compatibility guide for encoders below.

strong die cast casing with a front panel membrane that is both haptic and long-lasting.

large, easily readable LCD screen.

PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets are among the features.

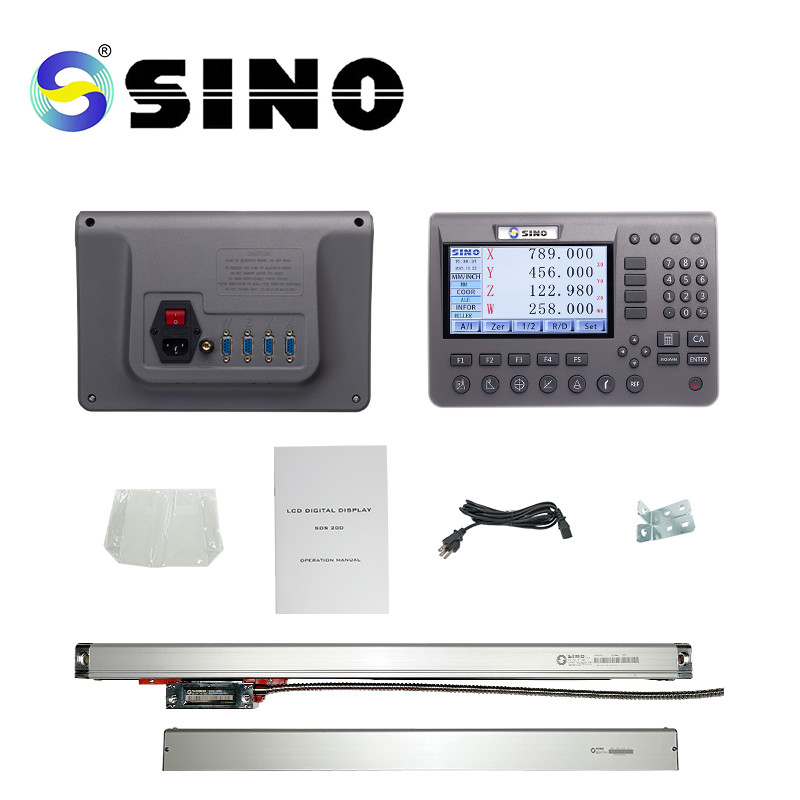

Package list:

Detail Information of SDS200 digital readout systems

Pin Description:

SINO Linear Scale Encoder

4 Axis Linear Scale Encoder

LCD Digital Linear Scale Encoder
