The Excellent Performance Of SDS6-2V Dro Digital Display In The Metal Processing Industry
The SDS6-2V digital reader is a universal DRO that utilizes the latest 16 bit microcontroller technology and can replace any type of basic or professional functions required by the SDS2 series. Its superior performance helps users better complete industrial operations.
Basic functions of SDS6-2V
Auxiliary Zero Position Function for 200 Points
Middle Split Action
Display of "mm/inch" conversion
Diameter/Radius Switch Display
Compensation for Segmented Errors
Payment for Linear Mistakes
Memory for Power Interruptions
Bedtime Switch
Calculations in mathematics
Optional RS-232-C interface
Applicable locations for the digital readout system SDS6-2V DRO
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
Specifications :
DRO SDS6-2V is a dual axis digital reader with multiple functions. The configuration of the system can be changed to meet different processing needs. In many other visual processing activities, it can calculate arcs, drill holes perpendicular to a straight line, drill holes at equal intervals around the circumference, process surfaces with angles, measure taper, calculate angles, and apply digital filters. These features make the use of visual functions easier. It is the first factory in China to use 16 bit and 32-bit calculators in the DRO system. The input frequency of the DRO system is as high as 5MHz, with the highest a/B ratio in the world.
Model No:
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
Packaging List :
| 1 PC | 2 Axis LED digital readout SDS6-2V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

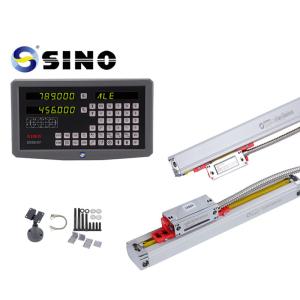

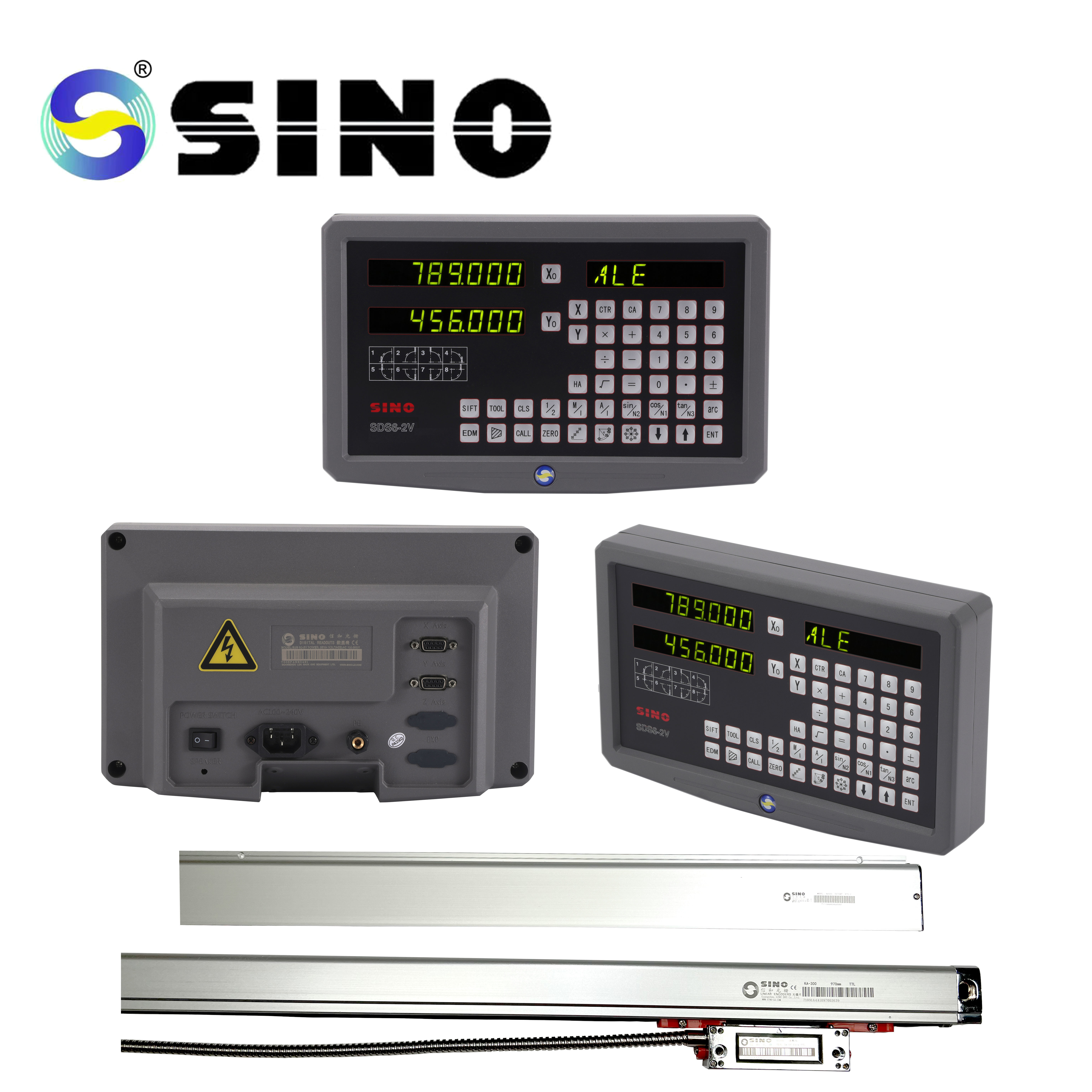

Product image /photos:
The rack in the picture is optioned, not standard product.
